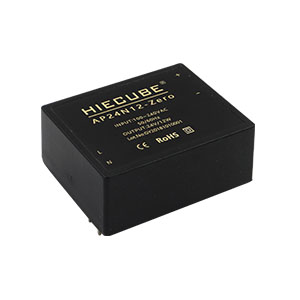

24W High Performance
? Worldwide universal range AC and DC input
? Built-in lightning protection surge,pulse group attenuator
? Built-in EMC circuit Meets EN55032 ClassB rating
? Synchronous rectified, differential mode filtering, common mode filtered output, Regulated, low ripple noise output
? Small size: 49*36*23mm
? Protection type: overload protection, short circuit protection, overheat protection
? No need for peripheral circuit design, PCB soldering installation
? CE/RoHS certified
Compared with the 24W economy, EMC circuit, lightning protection and surge circuit, pulse group attenuation circuit, output common mode differential mode filter and output filter capacitor are added
? Click on the ACDC power module below to learn more
| 系列標(biāo)題 | 功率(W) | 輸入電壓(VAC/DC) | 輸出電壓 (VDC) |
輸出電路 | 隔離耐壓(VAC) | 封裝形狀 | 封裝尺寸 (mm) |
|
|---|---|---|---|---|---|---|---|---|
| AP05N15-Zero | 15 | 85~265VAC/100~370VDC | 5 | Single output | 3000 | DIP | 49*36*23mm |
|
| AP06N15-Zero | 15 | 85~265VAC/100~370VDC | 6 | Single output | 3000 | DIP | 49*36*23mm |
|
| AP09N24-Zero | 24 | 85~265VAC/100~370VDC | 9 | Single output | 3000 | DIP | 49*36*23mm |
|
| AP12N24-Zero | 24 | 85~265VAC/100~370VDC | 12 | Single output | 3000 | DIP | 49*36*23mm |
|
| AP15N24-Zero | 24 | 85~265VAC/100~370VDC | 15 | Single output | 3000 | DIP | 49*36*23mm |
|
| AP20N24-Zero | 24 | 85~265VAC/100~370VDC | 20 | Single output | 3000 | DIP | 49*36*23mm |
|
| AP24N24-Zero | 24 | 85~265VAC/100~370VDC | 24 | Single output | 3000 | DIP | 49*36*23mm |
|
